Comfort Seat (Tractors with Cab)

To adjust the seat to suit a weight put upon it, turn knob (B). When the seat is set to the weight of the operator, a green mark appears in the display window.

To adjust the height, move knob (D) to one of four possible positions.

Fore/aft spring:

  • Lever (C) to the right - Fore/aft suspension
  • Lever (C) to the left - No fore/aft suspension

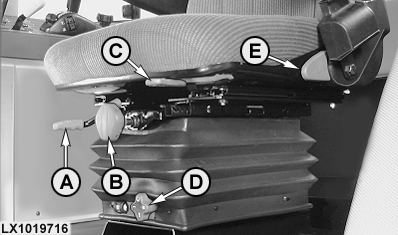

LX1019716


A-Fore-and-aft adjustment
B-Weight adjustment
C-Lever for fore/aft spring
D-Knob for height adjustment
E-Backrest tilt

AG,OU12401,10116 -19-29AUG00-1/1
