Neutral Start Circuit

1. Depress clutch pedal.

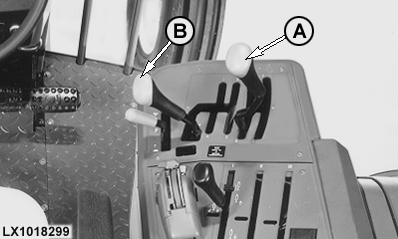

2. Move range shift lever (A) to neutral.

3. Move gear lever (B) to any gear.

4. Turn key in main switch as far as it will go to the right. The starter must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in all the other gears.

AG,OU12401,10124 -19-31AUG00-1/2

1. Depress clutch pedal.

2. Move range shift lever (A) to neutral.

3. Move the reverse drive lever (B) to any travel direction (forward or reverse).

4. Turn key in main switch as far as it will go to the right. The starter must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in the other direction of travel.

AG,OU12401,10124 -19-31AUG00-2/2
