Cleaning the Cab Air Filter

Every time the primary filter (air cleaner) is serviced, also remove the cab air filter and clean it with compressed air directed from the clean side.

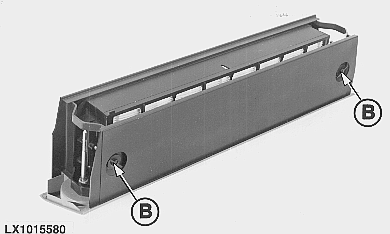

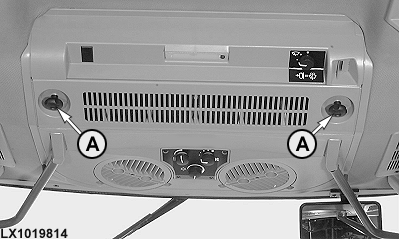

Slacken off screws (A) and take out the air filter box from below. Open catches (B) and take out the air filter element.

Replace the cab air filter together with engine primary air filter element.

AG,OU12401,10125 -19-31AUG00-1/1
