Fuses (Tractors with Cab)

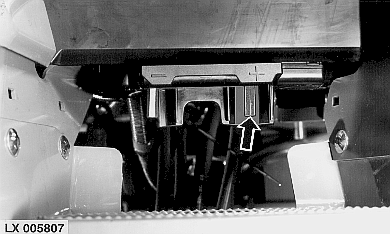

The main fuse is located inside the power distributor. It protects the entire battery circuit (160 A).

Disconnect the battery, unscrew the r.h. pin and remove the retaining screw. Lift out the power distributor from below.

LX005807

AG,OU12401,10127 -19-01APR01-1/3

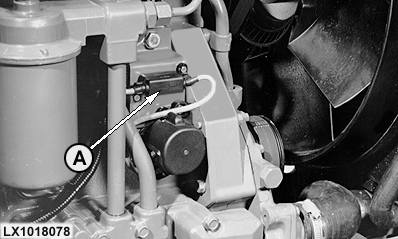

Fuse (A) is for the electrical starting aid. It is a 70-amp fuse.

LX1018078

AG,OU12401,10127 -19-01APR01-2/3

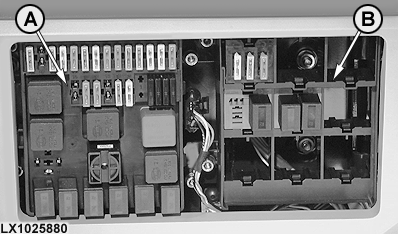

The other fuses are located in the two load centers (fuse boxes).


A-Load center 1
B-Load center 2

LX1025880

AG,OU12401,10127 -19-01APR01-3/3
