Have function of rockshaft control checked regularly by your John Deere dealer.

AG,OU12401,102 -19-08JAN00-1/4

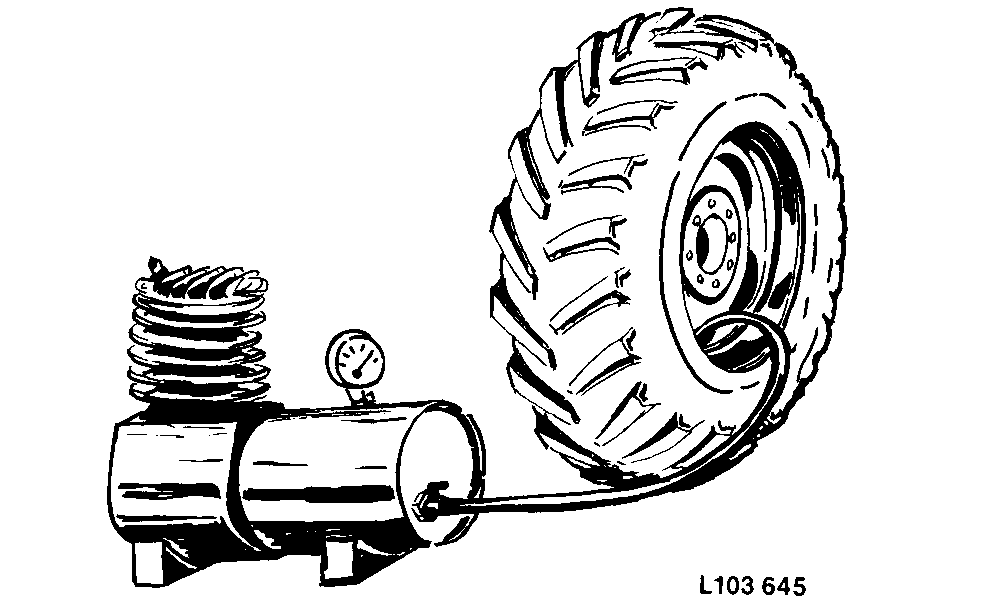

Adapt tire pressures to type of work and ground conditions (consult your John Deere dealer or local tire agent).

AG,OU12401,102 -19-08JAN00-2/4

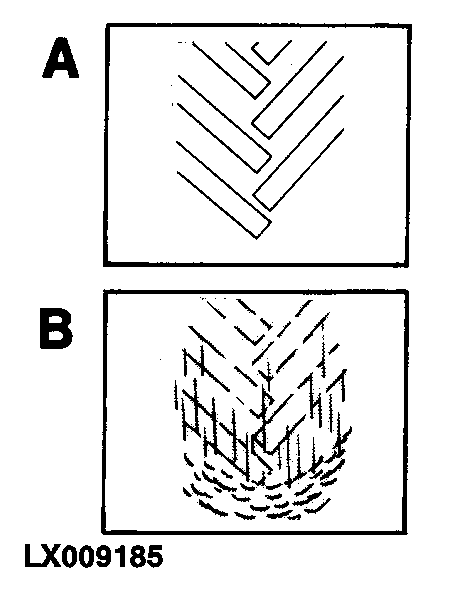

Choose ballast to obtain 10 to 15% wheel slip. Use no more ballast than necessary, reduce ballast for light work.

A-Too much ballast
B-Too little ballast
C-Correct ballast

AG,OU12401,102 -19-08JAN00-3/4

Always drive in the highest possible gear with reduced engine speed.

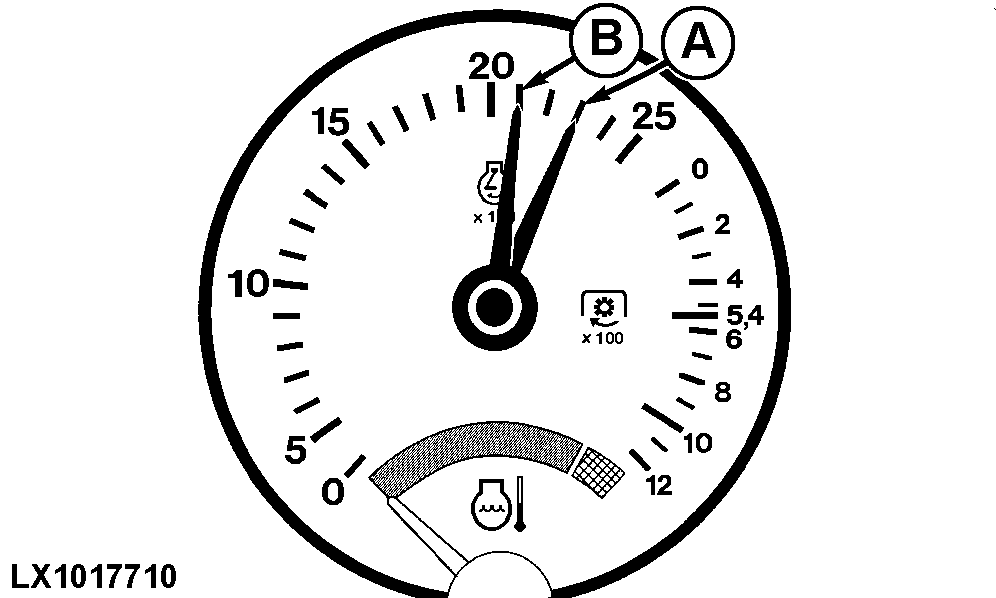

Choose a gear so that engine speed (A) with engine not under load drops 150 to 250 rpm when the tractor is operating and the engine is under load (B).

NOTE: For light work, reduce engine speed below 2000 rpm. Select a gear so that engine speed drops 200 to 300 rpm when operating.

AG,OU12401,102 -19-08JAN00-4/4
