Light Switches

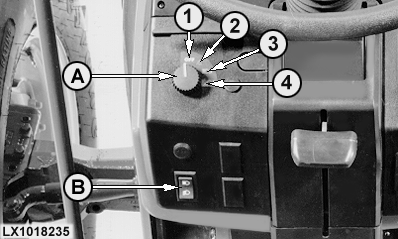

Light switch (A) can be set to the following positions:

1-Light switch in "off" position

2-Warning lights "on"

3-Headlights, tail lights and warning lights "on"

4-Headlights and work lights "on"

Switch (B) can be set to the following positions:

  • Switch down = Low beam
  • Switch up = High beam

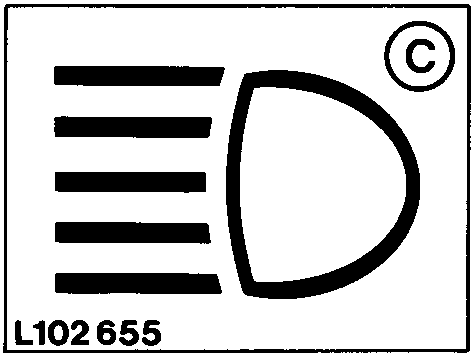

Indicator light (C) will glow when switch (B) is in "high beam" position.

LX1018235
L102655

AG,OU12401,10 -19-12DEC99-1/1
