Rockshaft Control

The rockshaft is controlled by means of hitch control lever (A) and raise/lower switch (B). The lift height can be limited by means of the height limit control (C).

To make the rockshaft ready for operation, start the engine and either:

• move lever (A) to the position that corresponds to the position of draft links,
• move the lever (A) to one of the end positions, or
• actuate switch (B)

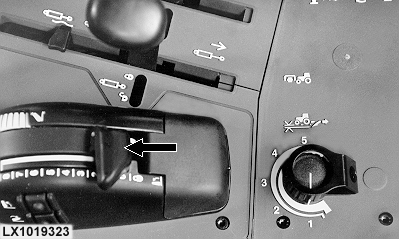

Pull control lever towards "0" - raise implement (Fig. I)

Push control lever towards "9" - lower implement (Fig. II)

Pull control lever as far as it will go (beyond "0") - rockshaft is locked

The implement can be raised and lowered independently of lever (A) by means of switch (B). This is of assistance when turning at the end of a field , for example. If the upper part of the raise/lower switch is pressed, the implement is raised as high as the setting at height limit control (C). If the lower part of the raise/lower switch is pressed, the implement is lowered as far as the setting at control lever (A).

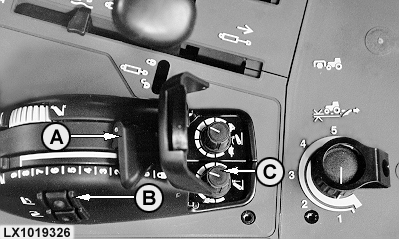

A-Hitch control lever
B-Raise/lower switch
C-Height limit control

AG,OU12401,23 -19-13DEC99-1/1
