Load/Depth Adjustment (If Equipped)

A-Load/depth control
B-1=Depth control
C-2-4=Mixed control
D-5=Load control

AG,OU12401,26 -19-13DEC99-1/5

CAUTION: Before connecting implements to the three-point hitch, the load/depth control must be moved to position "1" (depth control) to prevent unintentional raising or lowering of rockshaft.

With load/depth control in this position, the implement is held at the selected position.

AG,OU12401,26 -19-13DEC99-2/5

The intermediate positions of the load/depth control allow the effects of depth control and/or load control to be infinitely varied as the ground conditions require.

AG,OU12401,26 -19-13DEC99-3/5

With load/depth control in this position, the implement is raised as resistance (soil density) increases and lowered as resistance decreases, thus maintaining the preselected load.

AG,OU12401,26 -19-13DEC99-4/5

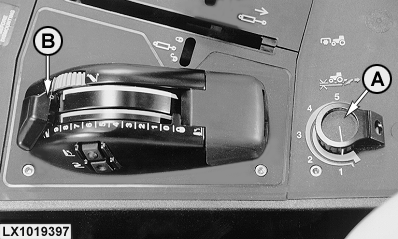

In "Float" position (for rockshaft-controlled implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor. To obtain a "floating" action, set load/depth control (A) to "1" and push hitch control lever (B) fully to the front.

AG,OU12401,26 -19-13DEC99-5/5
