Checking Engine Speeds

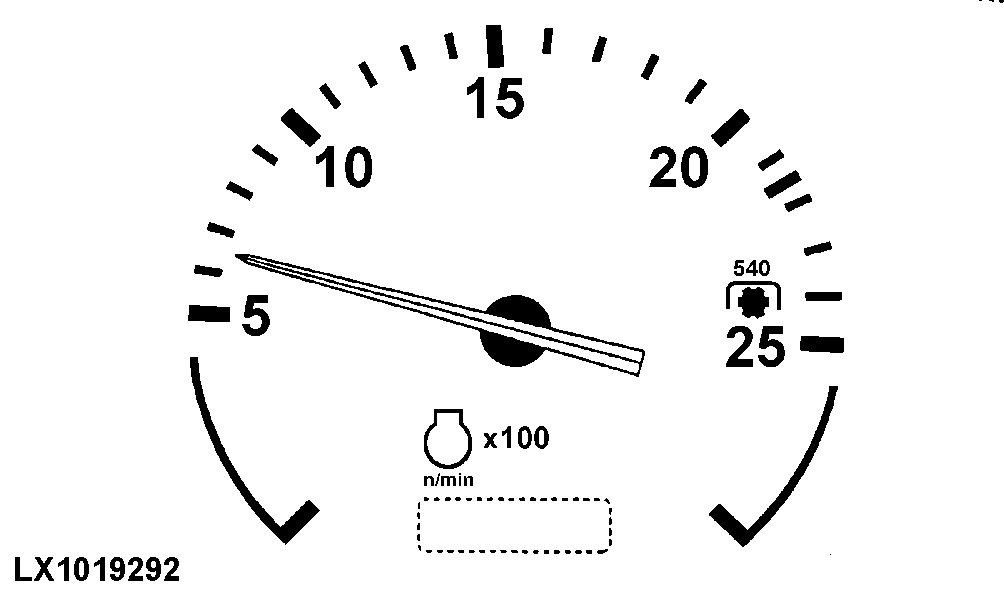

Warm up engine and use tachometer to check engine speeds. The following guidelines apply:

  6405 Tractors 6605 Tractors
Slow idle 875 to 925 rpm 825 to 875 rpm
Fast idle
 2480 to 2510 rpm
 2480 to 2510 rpm



Have adjustments carried out by your John Deere dealer.

LX1019292

AG,OU12401,58 -19-01OCT00-1/1
