Couplers

causym CAUTION: The hydraulic system has a maximum stand-by pressure of 17500 kPa (175 bar; 2540 psi). For your own protection and to assure proper functioning of the system, use only genuine John Deere parts.

Couplers allow hydraulic hoses to be coupled as well as uncoupled without loss of oil. If a malfunction or accident causes the hose to break loose from the coupler, the oil flow through the coupler is stopped immediately.

To connect the hose union, press it firmly into the coupler.

NOTE: When the control lever is pushed forward (or to the right in case of the multi-function lever), pressure is applied to the upper union.

To disconnect the hose, give it a firm pull.

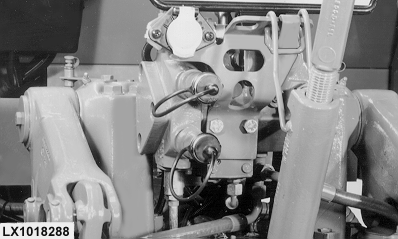

LX1018288
