Front Wheel Drive Axle Oil

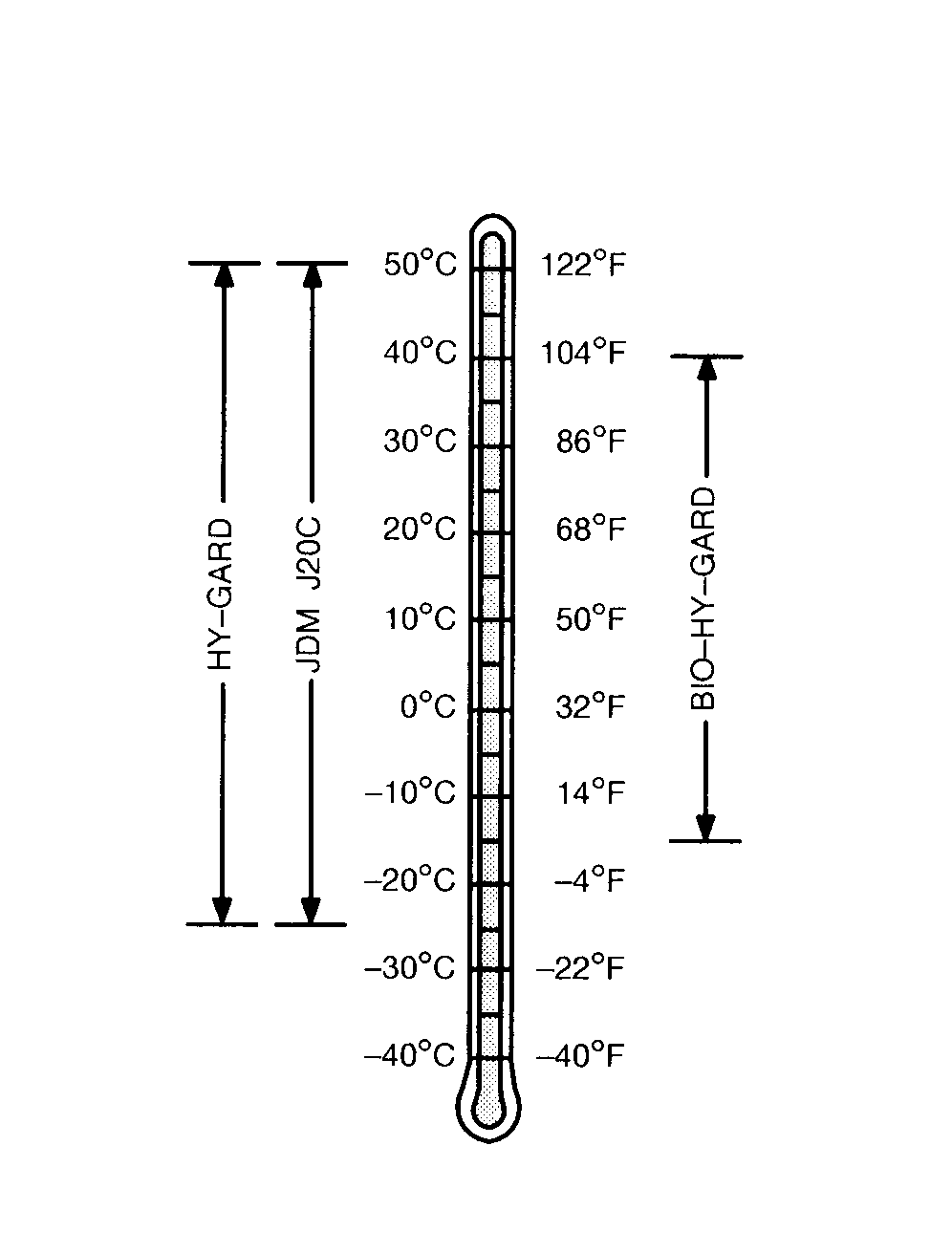

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oil is preferred:

• John Deere HY-GARD ®

Other oils may be used if they meet the following:

• John Deere Standard JDM J20C

Use the following oil when a biodegradable fluid is required:

• John Deere BIO-HY-GARD ™ ¹

HY-GARD is a trademark of Deere & Company.
BIO-HY-GARD is a trademark of Deere & Company

¹BIO-HY-GARD meets or exceeds the minimum biodegradability of 80% within 21 days according to CEC-L-33-T-82 test method. BIO-HY-GARD should not be mixed with mineral oils because this reduces the biodegradability and makes proper oil recycling impossible

FX,OIL1 -19-14JUN96-1/1
