Checking Transmission/Hydraulic System Oil Level

IMPORTANT: Check oil level when oil is cold, if possible in the morning after the tractor has been standing overnight.

1. Park tractor on level ground.

2. Shift transmission to "PARK".

3. Lower draft links.

LX,0250003568 -19-01APR97-1/2

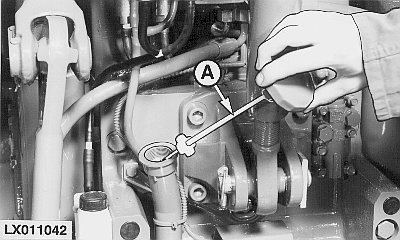

4. Unscrew dipstick (A), pull out and wipe clean.

5. Insert dipstick, screw in to full extent, then remove dipstick again and check oil level.

The oil level should be between the two marks on the dipstick. If not, top up with oil through oil filler neck.

LX,0250003568 -19-01APR97-2/2
