OMAL153481: 6405 and 6605 Tractors (265203- ), Block File: LX_OMOPER014934_19

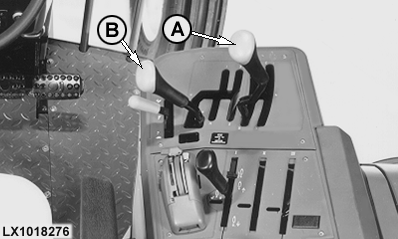

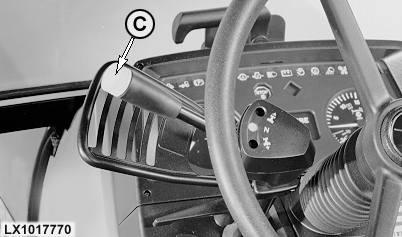

Gears are shifted by means of range shift lever (A) and gear shift lever (B). The Power Reverser also has reverse drive lever (C).

IMPORTANT: Engage parking lock only when the tractor is stationary.

NOTE: After the engine has been started, wait for 5 seconds before moving the gear shift lever (B) out of neutral position.

Optimum Gear-Shifting for Driving Under Load (Transport)

1. Select a range suitable for driving away under load.

2. Engage the first gear.

3. Drive away and shift up through the ranges until the top range is reached.

4. Shift up through the gears.

LX,OMOPER014934 -19-01OCT00-1/1
