Engaging Creeper Transmission

Creeper transmission can be engaged in ranges A, B and C.

To engage or disengage creeper transmission, depress clutch pedal.

To engage creeper transmission:

1. Select range.

2. Engage creeper.

Never engage creeper transmission with engine speed higher than 1000 rpm.

IMPORTANT: Do not use creeper transmission with implements that penetrate the soil and require a high power input. Using the creeper transmission under these circumstances may result in mechanical failure.

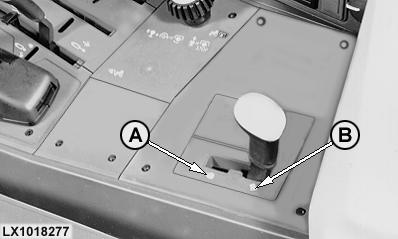

A-Creeper speed
B-High speed

LX,OMOPER014936 -19-01DEC97-1/1
