Direct Actuation

In the event of an electrical failure, the rockshaft can be actuated as follows:

Disconnect wiring harness.

Run the engine. Take off the protective cap.

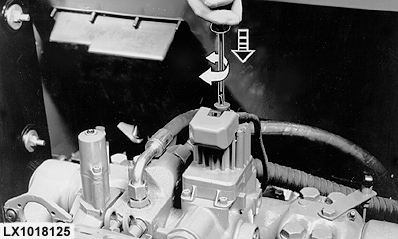

From the operator's seat, press down the screw with a screwdriver until it engages in the detent, and then turn to the right until the three-point hitch rises.

See your John Deere dealer.

LX,OMROCK014945 -19-01FEB00-1/1
