OMAL153481: 6405 and 6605 Tractors (265203- ), Block File: LX_OMTREA015940_19

Positions of Rims and Wheel Disks with Rack-and-Pinion Axle

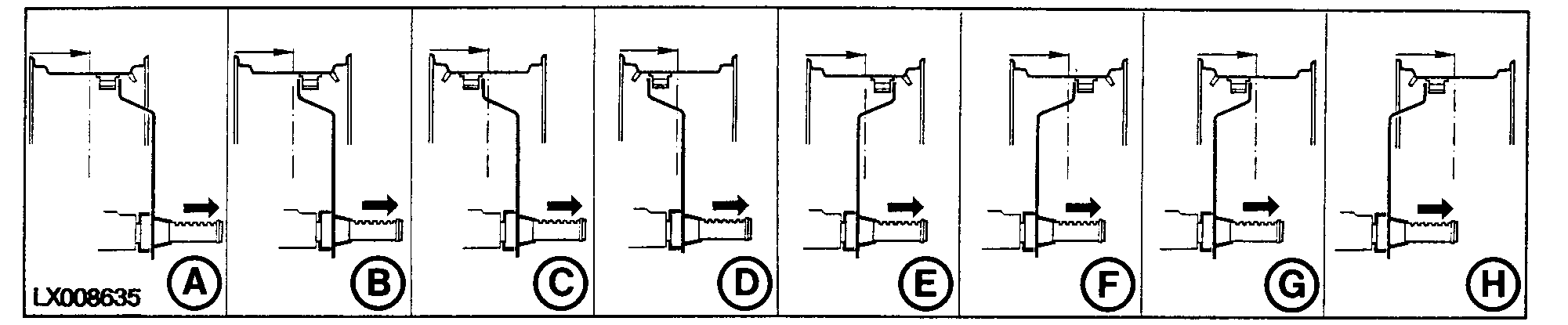

Cast wheels

LX008635

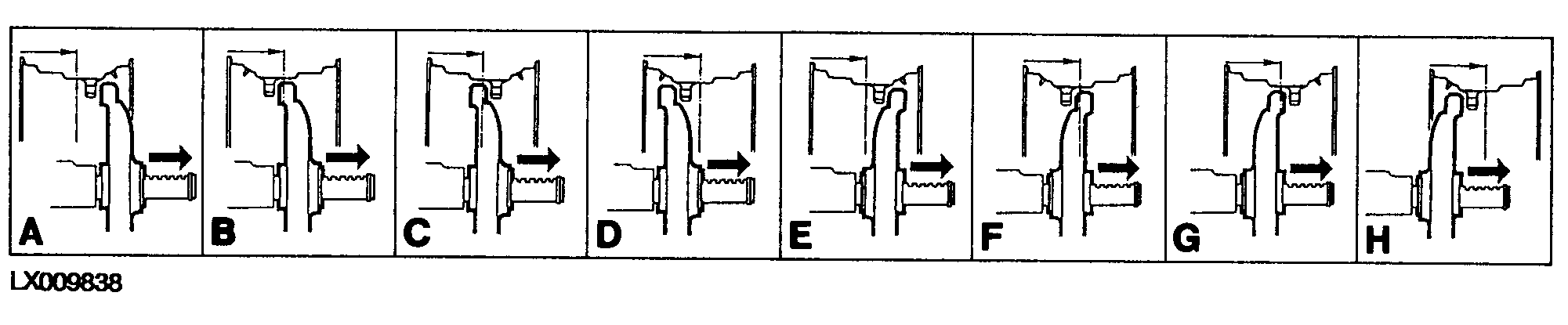

Steel wheels, 8 positions

NOTE: Use the drawings to determine the appropriate position of rims and wheel disks. Positions vary depending on type used.

LX,OMTREA015940 -19-01DEC97-1/1
