Lift Links

A greater transport clearance is obtained by shortening the links. Extra working depth is obtained by lengthening the links.

To level implement from side-to-side, only the right-hand link need be adjusted. Use handle (A) to adjust the link. After adjustment is completed, secure adjusting handle (A).

To adjust left-hand link, remove it from draft link and screw yoke end (B) of lift link in or out.

Length of links (C) must be kept within the following limits:

  • Minimum length 705 mm (27.8 in.)
  • Maximum length 865 mm (34.1 in.)

NOTE: The lift link dimensions quoted above are with lift links locked in draft links (no vertical float).

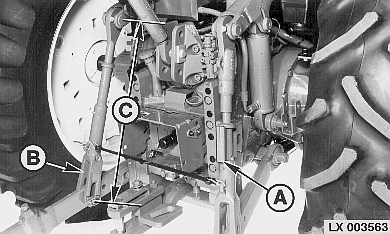

LX003563


A-Adjusting handle
B-Yoke end
C-Length of links
