Adjusting Front Wheel Tread

Block up front end of tractor. Do not place jack under engine oil pan!

LX,OSPU000224 -19-02MAR94-1/2

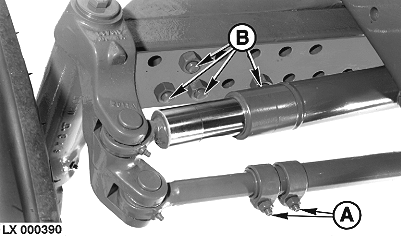

Remove tie rod clamp bolts (A) and axle bolts (B). Reposition axle ends to the desired front wheel tread. Reinsert axle bolts and tighten to 400 N·m (295 lb-ft).

Adjust tie rods to front wheel tread, reinsert clamp bolts and tighten to 50 N·m (35 lb-ft).

Check toe-in, and adjust if necessary.
