Reversing Rear PTO Shafts

One end of the 540 rpm stub shaft has 6 splines for operating at 540 rpm, and the other end has 21 splines for operating at 1000 rpm. Clean stub shaft thoroughly before installing.

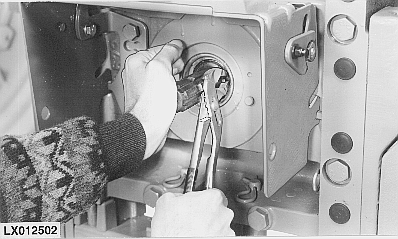

1. Remove snap ring (A) and pull out stub shaft.

2. Clean stub shaft thoroughly and coat it with grease. The groove (B) facilitates installation of snap ring.

3. Insert stub shaft in PTO housing until snap ring (A) fits into the groove.

4. Install snap ring (A).

NOTE: A flattened area on the stub shaft facilitates removal and installation of snap ring.
