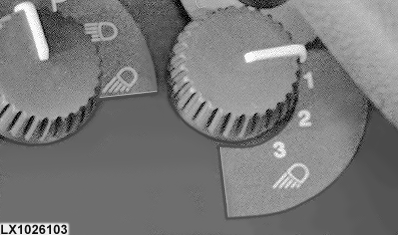

Work Light Switch (tractors with cab)Work lights are switched on and off at the main light switch (position 4). The various positions of the work light switch allow the work lights to be selected as follows: |
|
| Light switch | Work light switch | Work light combinations |
|---|---|---|
| 4 | 1 | Work lights on rear of cab roof |
| 4 | 2 | Work lights on front of cab roof |
| 4 | 3 | Work lights on front and rear of cab roof |
OU12401,00005C5 -19-01APR01-1/1 |
