OMAL159773: 6520, 6620, 6820, 6920 and 6920S Tractors(382764- ), Block File: LX_OMFAH011299_19

The PowrQuad transmission has 4, 5 or 6 ranges. 4 gears can be selected in each range. Reverse travel may be selected in any of the ranges.

causym CAUTION: High speeds can be achieved when reversing in the higher ranges, so take great care.

NOTE: Depending on equipment and legal requirements, the transmission may have either 12 or 16 reverse gears only.

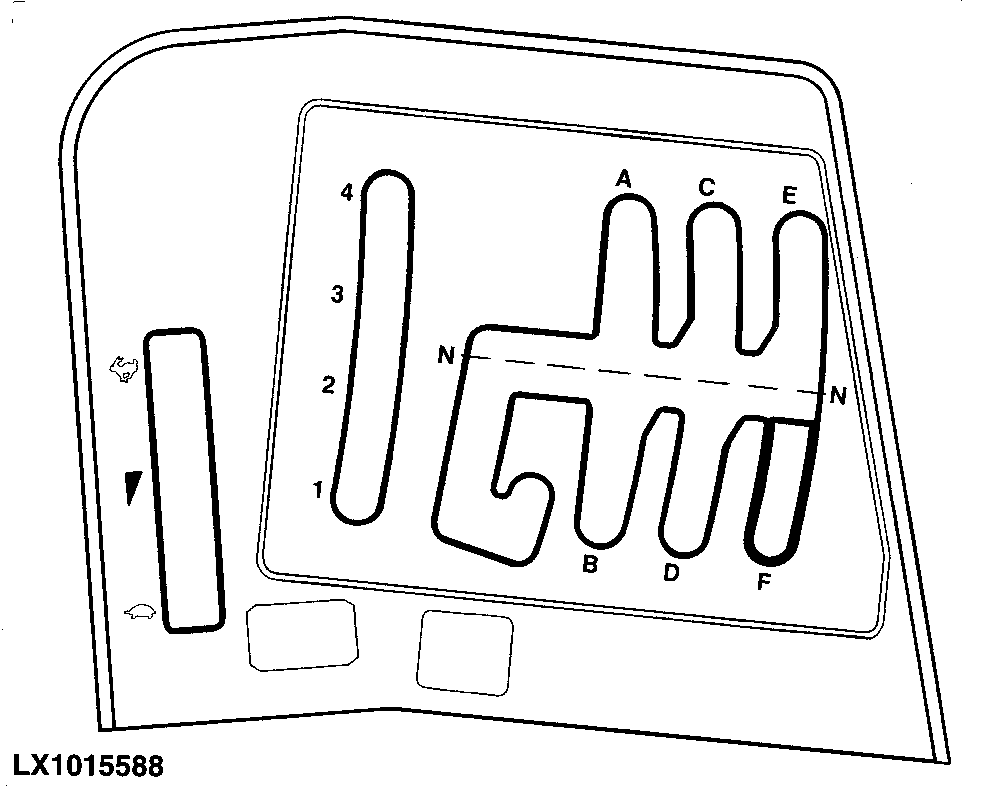

Reverse drive lever in console

LX1015588

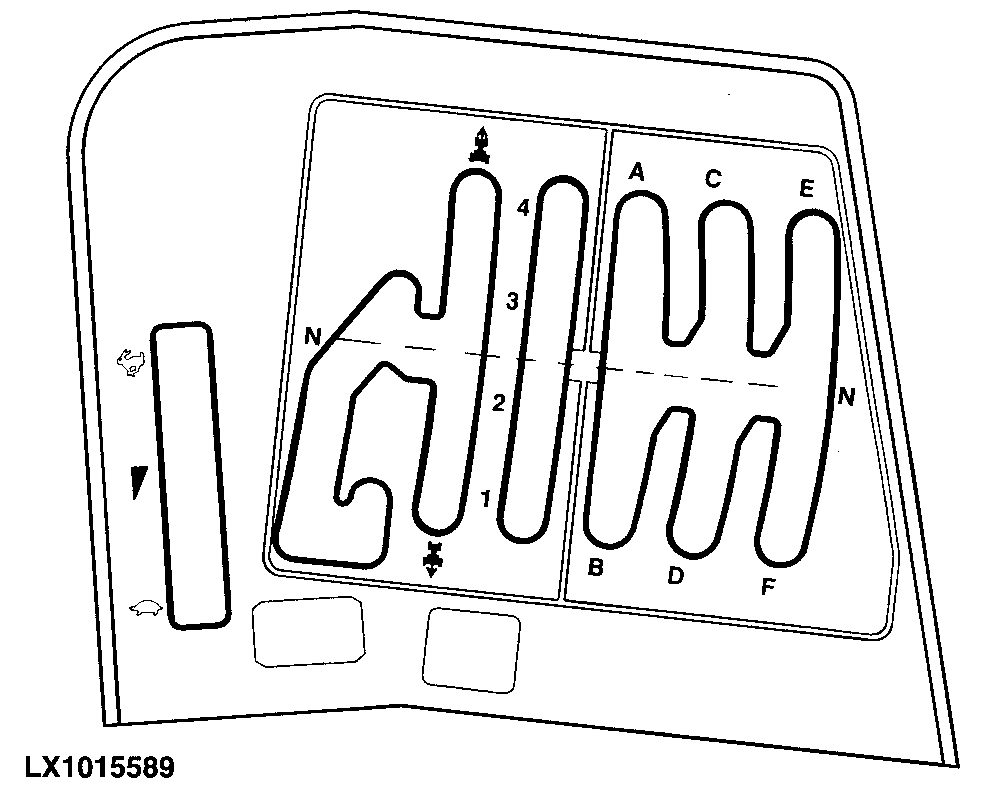

Reverse drive lever on steering wheel

LX,OMFAH011299 -19-01MAR00-1/1
