Transmission Serial Number

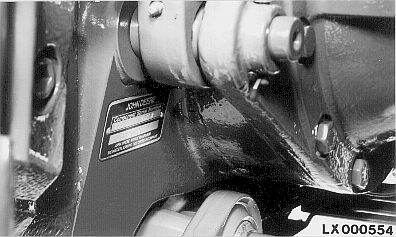

On 6520 and 6620 tractors, the transmission serial number plate is located on the right-hand side of the differential housing. It provides details of the transmission ratio of the front-wheel drive axle (e.g. 1,712) and the transmission ratio of the differential gear pair (e.g. 54/13). This information will be required if the type of tires is to be changed.

On 6820, 6920 and 6920S tractors, this information is provided on the product information plate inside the l.h. side of the radiator.

OU12401,0000E0F -19-01JUL03-1/1
