Tighten Front Wheel Attaching Nuts

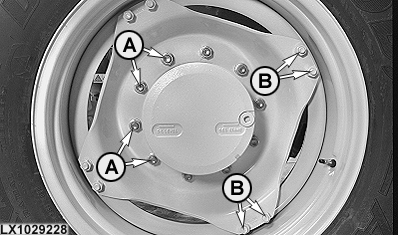

After adjusting front wheel tread, tighten front wheel attaching nuts (A) and nuts (B).

IMPORTANT: After the first 4 and 8 hours of operation, retighten all front wheel attaching nuts. Check tightness of these nuts frequently during the next 100 hours of operation.


A-480 N·m (355 lb-ft)
B-250 N·m (185 lb-ft)

LX1029228

OU12401,00103E0 -19-01MAR03-1/1
