Adjusting Front Wheel Toe-In

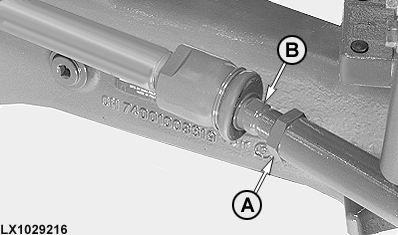

Slacken lock nut (A) and screw the threaded rod (B) in or out. After adjustment is completed, tighten lock nut.

Torque specifications
6520 to 6820 tractors... 50 N·m (35 lb-ft)
6920 and 6920S tractors... 85 N·m (60 lb-ft)


LX1029216

OU12401,00103E2 -19-01JAN03-1/1
