Engaging Creeper Transmission

To engage or disengage creeper transmission, depress clutch pedal.

Select creeper as follows:

1. Select range.
2. Engage creeper.

Never engage creeper transmission with engine speed higher than 1000 rpm.

IMPORTANT: Do not use creeper transmission when working with implements that penetrate the soil and require high tractive force.

Never use the creeper transmission in range D or higher (only possible on 6820, 6920 and 6920S tractors). Using the creeper transmission under any of these circumstances may lead to mechanical failure.

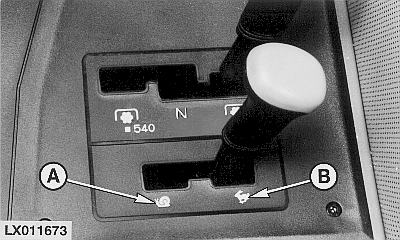

LX011673


A-Creeper speed
B-High speed

OULXE59,0010691 -19-21SEP04-1/1
