Air Comfort Seat

After starting the engine, release lever (E) briefly to bring the seat to its central position.

2. Adjust height

To adjust the height, pull lever (E) upward or push it down.

3. Adjust fore/aft spring

• Lever (D) forward - no fore/aft suspension
• Lever (D) backward - fore/aft suspension

4. Adjust lateral spring

• Lever (G) forward - lateral suspension
• Lever (G) backward - no lateral suspension

IMPORTANT: Shut off engine before swivelling the seat. Accidental contact with the controls could cause the tractor or implement to operate.

The seat swivel is operated by means of lever (F) as follows:

Lift the lever up. The seat turns 15° to the left and right. The seat locks at 7.5° intervals.

To lower the armrest through 30°, press the armrest tilt adjuster (K) into the armrest. Knob (J) allows the height of the armrests to be adjusted to any of 5 positions.

If equipped with a Premium Plus cab and armrest control console:

When driving the tractor, never swivel the seat beyond its 7.5° lock . Do not let the control console collide against the steering wheel.

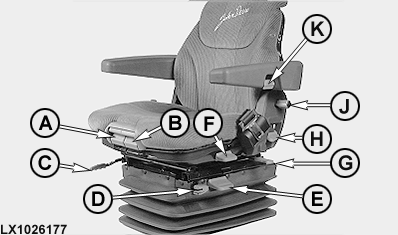

A-Lever for adjusting the cushion position¹
B-Lever for seat tilt adjustment¹
C-Fore-and-aft adjustment
D-Lever for fore/aft suspension
E-Height adjustment
F-Lever for swivel movement
G-Lever for lateral suspension
H-Backrest tilt
J-Armrest height adjustment
K-Armrest tilt adjustment

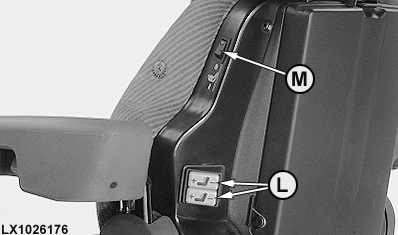

L-Pneumatic lumbar support adjustment
M-Seat heater switch¹
