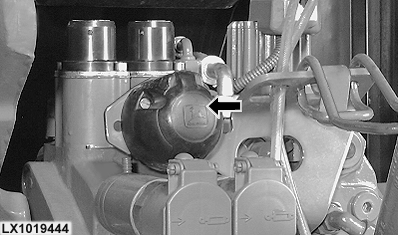

Seven-Terminal Trailer Socket

The socket allows lights, turn signals and other electrical equipment on a trailer or implement to be connected. Always use additional lighting on a mounted implement if this conceals the turn signals and other lights at the rear of the tractor.

NOTE: Suitable plugs can be obtained from your John Deere dealer.

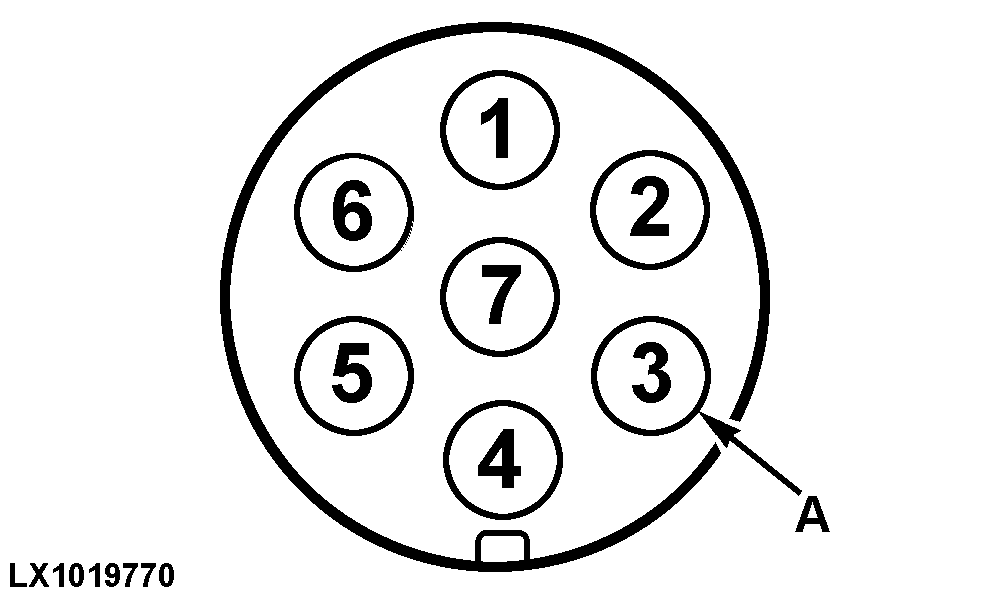

Terminal (A) is the ground connection.

Connection Function Wire color
1 L.h. turn signal Dark green
2 - -
3 Ground Black
4 R.h. turn signal Purple
5 R.h. tail light Gray
6 Brake lights Pale blue
7 L.h. tail light Gray


LX1019444
LX1019770
