Transmission and Hydraulic Oil

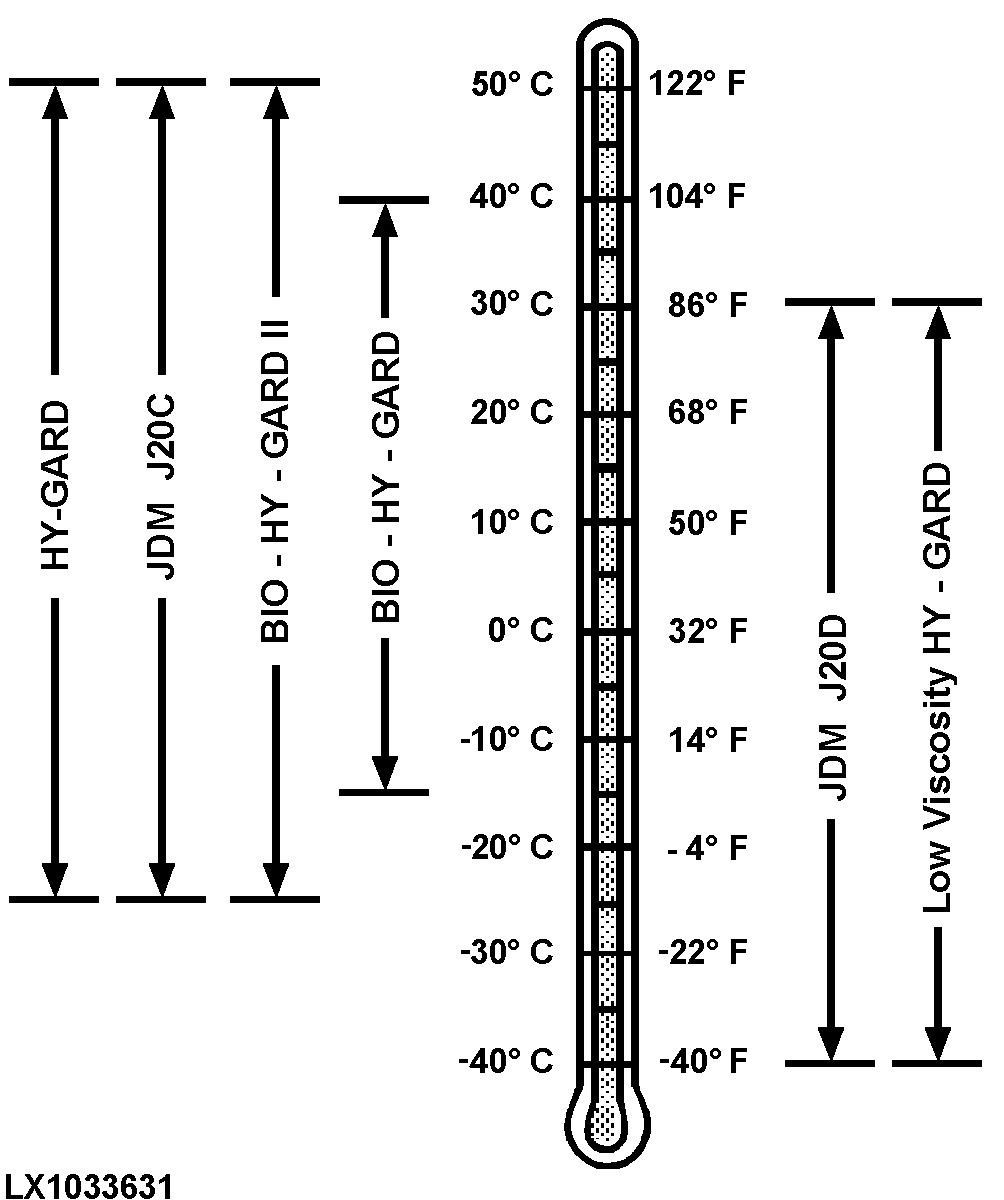

Use oil with a viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

• John Deere HY-GARD ™
• John Deere HY-GARD ™ with low viscosity

Other oils may be used if they meet one or more of the following:

• John Deere Standard JDM J20C
• John Deere Standard JDM J20D

Use John Deere BIO-HY-GARD II ™ ¹ or BIO-HY-GARD ™ ¹ when a biodegradable fluid is required.

IMPORTANT: On tractors with AutoPowr:

Do NOT use HY-GARD with low viscosity.

Do NOT use BIO-HY-GARD.

Other types of oil used must meet John Deere Standard JDM J20C.

HY-GARD is a trademark of Deere & Company.
BIO-HY-GARD II is a trademark of Deere & Company.
BIO-HY-GARD is a trademark of Deere & Company.

¹BIO-HY-GARD II meets or exceeds the minimum biodegradability of 80 % within 21 days according to CEC L-33-A-93 test method. BIO-HY-GARD meets or exceeds the minimum biodegradability of 80 % within 21 days according to CEC L-33-T-82 test method. These oils should not be mixed with mineral oils because this reduces the biodegradability and makes proper oil recycling impossible.

LX,ANTI1 -19-30APR04-1/1
