Lubricating Front Axle and Wheels (Tractors without Front-Wheel Drive)

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

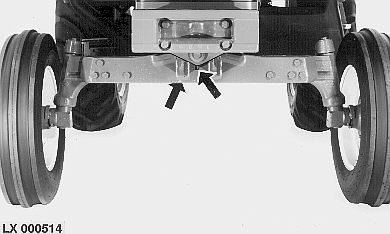

Lubricate front axle and front wheel grease fittings (these differ depending on tractor equipment) using John Deere multipurpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.

OU12401,0000BAC -19-01JAN03-1/1
