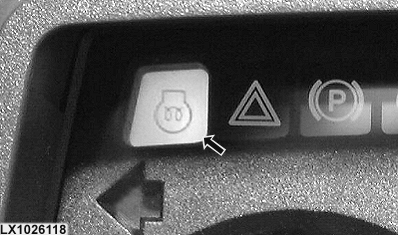

Engine ProtectionMalfunctions in the fuel system and engine are indicated by the light (see arrow) flashing and by the red STOP light, yellow CAUTION light and blue INFO light coming on. To protect the engine and prevent damage, there is an engine protection program that functions as follows whenever a serious malfunction occurs: |
|
| Malfunction | Light | Effect |
|---|---|---|
| Fuel temperature too high | Warning | Engine power is reduced to 25% |
| Fuel temperature too high | Stop | Engine power is reduced to less than 25% |
| Engine oil pressure too low | Warning | Engine power is reduced to 80% |
| Engine oil pressure too low | Stop | Engine power is reduced to 40% |
| Fuel filter clogged | Stop | Engine speed is reduced to 1200 rpm |
| Coolant too hot | Info | Engine power is reduced to 80% |
| Coolant too hot | Stop | Engine power is reduced to 60% |
| Other malfunctions | Warning | Engine power is reduced to 50% |
|
NOTE: On tractors equipped with a water sensor at the fuel filter, this lamp flashes as soon as water deposits have settled in fuel filter. |
OU12401,0000CD3 -19-01MAR03-1/1 |
