Installing Front Weights

The following combinations of basic weight (A) and additional weights (B) may be installed on the tractor:

Tractors Basic weight (A)
  75 kg 80 kg 110 kg Quantity of additional weights
  (165 lb) 175 lb 242 lb
6020 x x - 10
6120 x x - 10
6220 x x - 12
6320 x x - 14
6420 x - - 14
6420 - x - 16
6420 - - x 18



IMPORTANT: Tighten attaching screws (C) on basic weight (A) to 570 N·m (420 lb-ft) and screws (D) of additional weights (B) to 230 N·m (170 lb-ft).

Each additional weight weighs 50 kg (110 lb). Every increase in weight of 10 kg (22 lb) increases the front axle load by approx. 12 kg (26.5 lb).

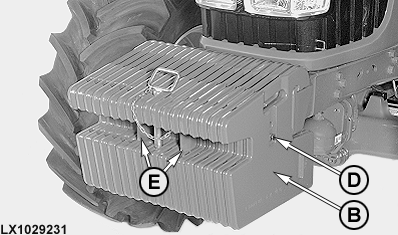

IMPORTANT: When installing six or more additional weights, they must be installed to form a jaw (E).

The jaw hitch should be used for shunting and towing on metalled road surfaces only.
