Fuses

The two main fuses are located under the engine hood, where they are secured on the r.h. side of the hood frame just above the battery.

Tractors without cab

F13›60-amp battery circuit (main power supply)

F14›60-amp battery circuit (main power supply)

Tractors with cab

F13›80-amp battery circuit (main power supply)

F14›80-amp battery circuit (main power supply)

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

Open the hood.

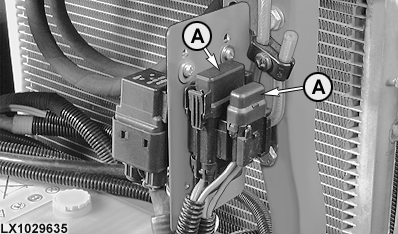

Take covers (A) off the two fuses.

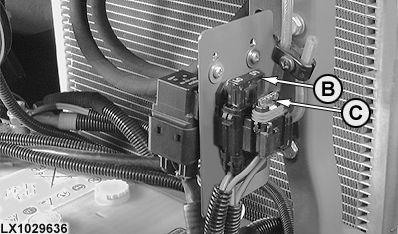

Replace fuse (B) or (C).

Put the covers back on the fuses.

A-Fuse covers
B-Main fuse (F13)
C-Main fuse (F14)

OU12401,0000E09 -19-11OCT03-1/5

The two fuses are located under the engine hood, where they are secured on the l.h. side of the hood frame just above the battery.

F16›60-amp, implement BUS (components)

F17›30-amp, implement BUS (CAN BUS)

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

Open the hood.

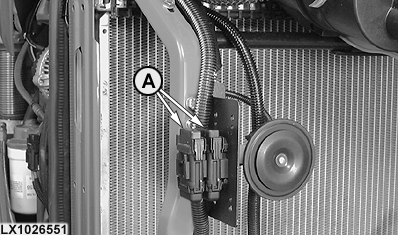

Take covers (A) off the two fuses.

Replace fuse (B) or (C).

Put the covers back on the fuses.

A-Fuse covers
B-Fuse F16 for implement BUS (components) (60 amp)
C-Fuse F17 for implement BUS (CAN BUS) (30 amp)

OU12401,0000E09 -19-11OCT03-2/5

The fuse for the LTC coolant pump is on the right side of the engine block.

F22-30-amp LTC coolant pump

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

Open the hood.

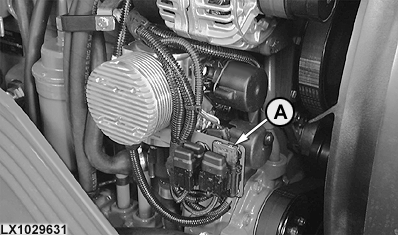

Take cover (A) off the fuse.

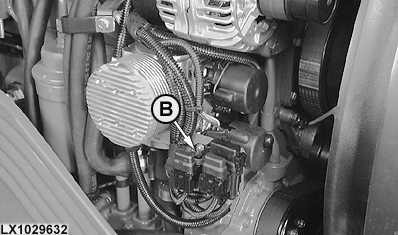

Replace fuse (B).

Put the cover back on the fuse.

A-Fuse covers
B-LTC coolant pump fuse (F22)

OU12401,0000E09 -19-11OCT03-3/5

The fuse for the electrical starting aid heating element is on the right side of the engine block.

F09-70-amp heating element in electric starting aid

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

Open the hood.

Take the cover off the fuse.

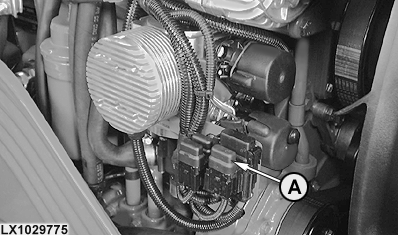

Replace fuse (A).

Put the cover back on the fuse.

A-Fuse F09 for heater element (electric starting aid)

OU12401,0000E09 -19-11OCT03-4/5

The fuse for the electrical starting aid indicator light is on the right side of the engine block.

F11-10-amp indicator light in electric starting aid

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

Open the hood.

Take the cover off the fuse.

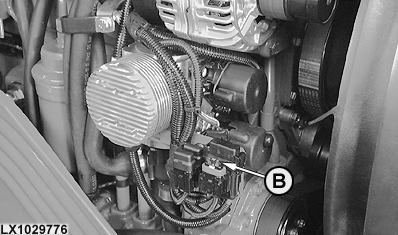

Replace fuse (B).

Put the cover back on the fuse.

B-Fuse F11 for indicator light (electrical starting aid)

OU12401,0000E09 -19-11OCT03-5/5
