After the First 4 and 8 Hours of Operation

Tighten rear wheel retaining bolts/nuts

(Torques vary depending on tractor equipment)


A-500 N·m (370 lb-ft)
B-250 N·m (185 lb-ft)
C-230 N·m (170 lb-ft)

LX1031575
LX001297

OU12401,0000E3F -19-01JUL03-1/3

Tighten front wheel retaining bolts/nuts

(Torques vary depending on tractor equipment)


A-250 N·m (185 lb-ft)
B-300 N·m (220 lb-ft)
C-250 N·m (185 lb-ft)

LX000558
LX1029249

OU12401,0000E3F -19-01JUL03-2/3

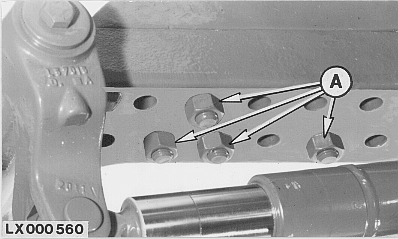

Adjustable front axle

Tighten crossmember attaching screws (A) to 400 N·m (300 lb-ft).

LX000560

OU12401,0000E3F -19-01JUL03-3/3
