Center Link Adjustment

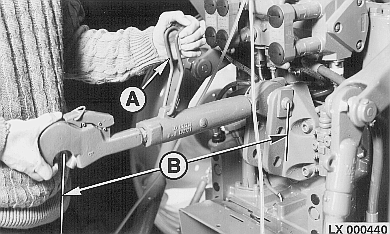

Length of center link can be adjusted by means of adjusting handle (A). Lift up adjusting handle and turn it until the required length is achieved.

Length (B) must be between 530 mm (20.9 in.) and 725 mm (28.5 in.).

Do not deviate from the specified dimensions. Grooves in the thread indicate the maximum permitted setting. The threads must not be unscrewed any further out of the receiver. After adjusting, push handle down again over center link. Insert attaching pin through implement mast and center link, and secure.
