Changing Oil In Front-Wheel Drive Axle Housing

causym CAUTION: If the oil is hot, it may be under pressure. Remove drain screw slowly.

1. Remove drain screw (A) and drain oil into a suitable container.

2. Re-install drain screw and tighten to 150 N·m (110 lb-ft).

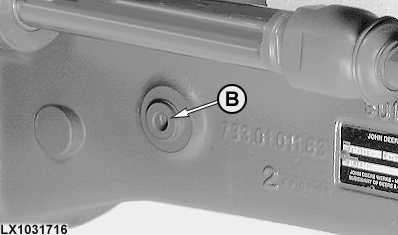

3. Remove oil level/filler plug (B). Fill with fresh oil. The oil level must be up to lip of filler neck. Re-install plug.

For capacities, see "Specifications".

NOTE: Location of screws varies depending on axle type.

LX1031715
LX1031716

OU12401,0000E4A -19-01JUL03-1/1
