Changing Oil In Front-Wheel Drive Final Drives

causym CAUTION: If the oil is hot, it may be under pressure. Remove drain screw slowly.

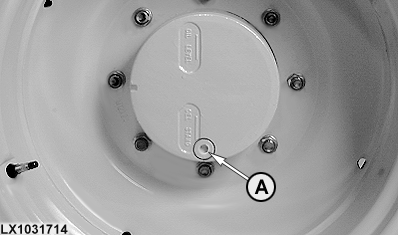

1. Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container.

2. Turn the wheel through 90° so that the line marked "Ölstand" is horizontal (see "Service / Every 250 Hours"), and fill with fresh oil at drain screw bore. Oil should be level with screw bore.

3. Re-install drain screw and tighten to 150 N·m (110 lb-ft).

For capacities, see "Specifications".
