Changing the Fuel Filters

Always change the two filters at the same time.

NOTE: Disconnect sensor cable first on tractors equipped with a water sensor at the fuel filter.

1. Unfasten filter retaining ring (A) and remove filter (B). Seal old filter with cover of the new one.

2. Remove water trap and install it on new filter.

3. Attach new filter. The marks on the filter must be aligned with those on the housing.

4. Tighten retaining ring (A) until it can be heard to engage.

5. Turn key in main switch to the right as far as the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 20 seconds.

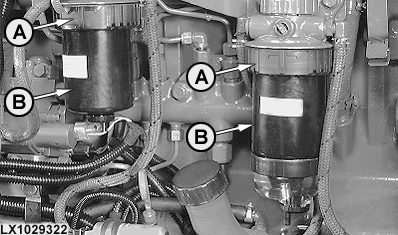

LX1029322


A-Retaining ring
B-Filter element
