Check Engine Speeds

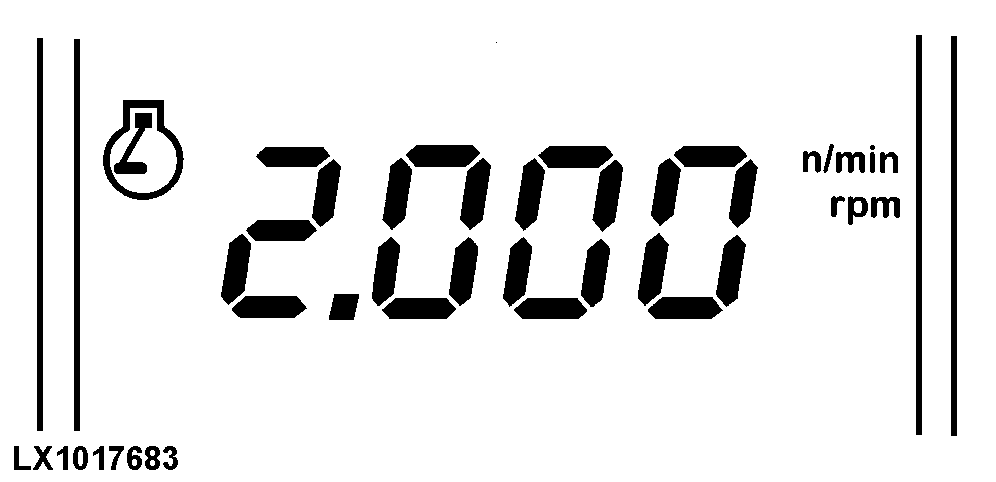

Warm up engine and use the rev counter to check engine speeds. The following guidelines apply:

Slow idle Fast idle
845-855 rpm 2455-2465 rpm



Have adjustments carried out by your John Deere dealer.

LX1017683

OU12401,0000E6A -19-01JUL03-1/1
