Checking the Neutral Start Circuit

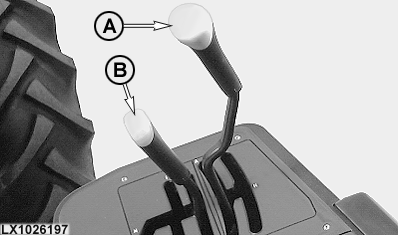

2. Move range shift lever (A) to neutral.

3. Move gear shift lever (B) to any gear.

4. Turn key in main switch as far as it will go to the right. The starting motor must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in all the other gears.

OU12401,0000E83 -19-01JUL03-1/5

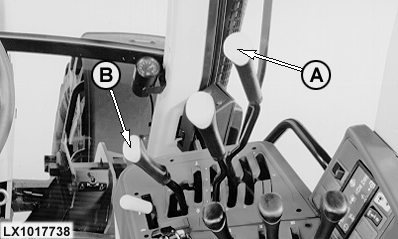

2. Move range shift lever (A) to neutral.

3. Move reverse drive lever (B) to any travel direction (forward or reverse).

4. Turn key in main switch as far as it will go to the right. The starting motor must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in the other direction of travel.

OU12401,0000E83 -19-01JUL03-2/5

2. Move range shift lever (A) to neutral.

3. Move reverse drive lever (B) to "forward".

4. Turn key in main switch as far as it will go to the right. The starting motor must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in "reverse".

OU12401,0000E83 -19-01JUL03-3/5

2. Move reverse drive lever (B) to "forward" or "reverse".

3. Start the engine and wait 6-7 seconds. The "N" display must light up.

4. Depress the clutch and engage any range. Gradually release the clutch pedal. The tractor must NOT start to move. If it does, see your John Deere dealer immediately.

OU12401,0000E83 -19-01JUL03-4/5

2. Turn key in main switch as far as it will go to the right. The starting motor must NOT turn over. If it does, see your John Deere dealer immediately.

3. Repeat the test in the other direction of travel.

OU12401,0000E83 -19-01JUL03-5/5
