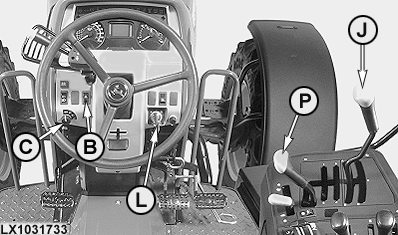

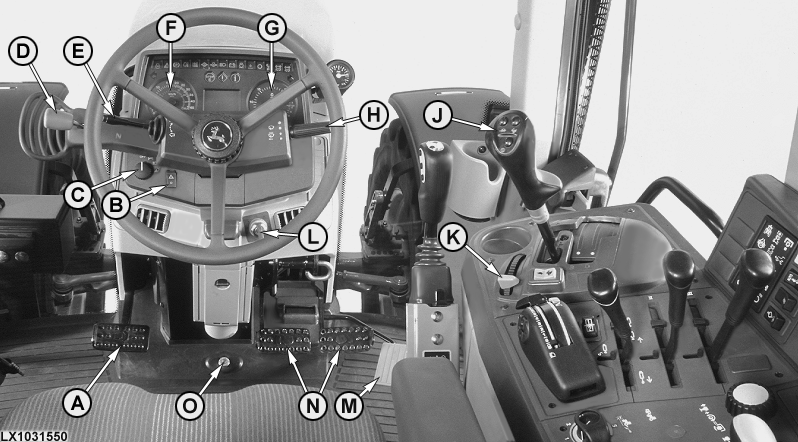

Vehicle Controls

A-Clutch pedal
B-Hazard warning switch
C-Light switch
D-Reverse drive lever
E-Turn signal lever
F-Speedometer, km/h
G-Rev counter, rpm
H-Windshield wiper switch
J-Range shift lever

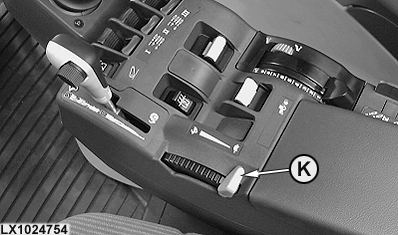

K-Hand throttle
L-Main switch
M-Accelerator pedal
N-Brake pedals
O-Differential lock
P-Gear shift lever

OU12401,0000ED8 -19-01JUL03-1/2

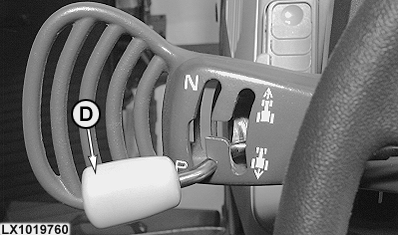

D-Reverse drive lever
Q-Speed control lever
R-Speed wheel (for setting maximum speed)

OU12401,0000ED8 -19-01JUL03-2/2
