Cleaning the Cab Air Filters

NOTE: On tractors equipped with Ultra-Gard activated carbon filters, the filters cannot be cleaned. These filters must be replaced with new ones every 500 hours or once a year at the latest.

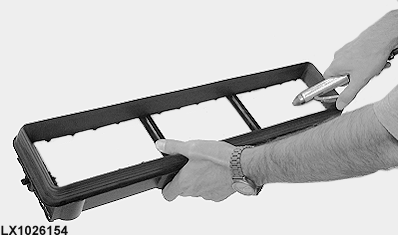

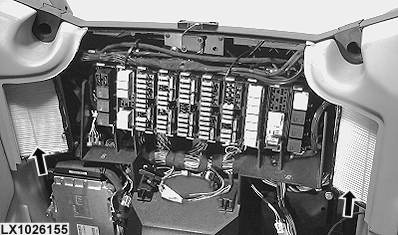

Every time the primary filter (engine air cleaner) is serviced, also remove the two cab air filters and the recirculating air filters, and clean them with compressed air directed from the clean side.

Replace cab air filters together with engine primary air filter element.

OU12401,0000EDF -19-01JUL03-1/1
