Instructional Seat

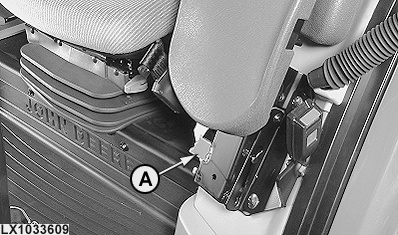

Press lock (A).

A-Lock

OU12401,0001081 -19-01APR04-1/4

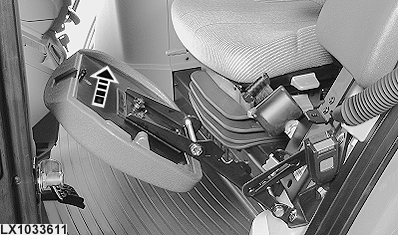

Tip instructional seat forward.

OU12401,0001081 -19-01APR04-2/4

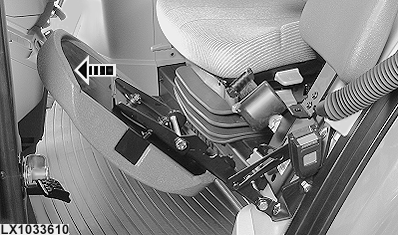

Turn seat clockwise through 90 degrees.

OU12401,0001081 -19-01APR04-3/4

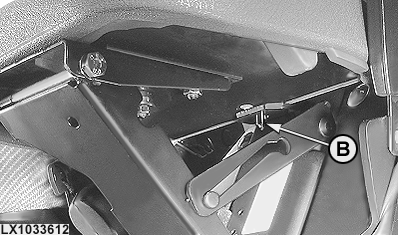

Tip seat backward. Make sure that pin (B) engages in the appropriate bore.

B-Retaining pin

OU12401,0001081 -19-01APR04-4/4
