Multi-Function Lever

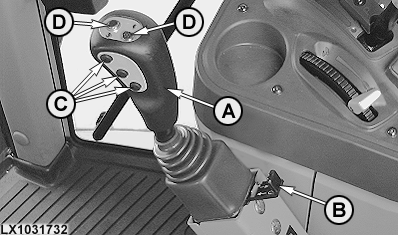

Multi-function lever (A) permits two SCVs to be operated at the same time. Slide control (B) locks the lever. Keys (C) enable other functions to be carried out.

Gear-shift switches (D) allow the gears at the transmission to be shifted.

Pulling lever (A) back makes the front loader rise. Pushing the lever forward until perceptible resistance is reached makes the front loader go down. If the lever is pushed forward beyond the resistance, it engages in a detent and the front loader is in its float position.

Moving the lever to the left makes the loader bucket tip up. Moving the lever to the right makes the loader bucket dump.

A -Multi-function lever
B-Transport lock slide control
C-Buttons for 3rd, 4th and 5th functions
D-Gear-shift switches
