Changing Transmission/Hydraulic Oil (Tractors NOT Equipped with AutoPowr)

1. Start engine and operate several hydraulic functions to heat up oil.

2. Park tractor so that it is level. Lower draft links and front-mounted implements.

3. Stop the engine and remove the key.

4. Apply handbrake (transmission in neutral)

5. Remove drain screws (A).

6. Replace transmission/hydraulic oil filter elements (B).

7. Remove drain screw (C), pull out intake screen and wash in fuel.

8. Before refilling with fresh oil, reinstall intake screen, replace seals and tighten drain screws to 50 N·m (35 lb-ft).

9. Add transmission/hydraulic oil to the transmission case.

LX009834
LX1031731

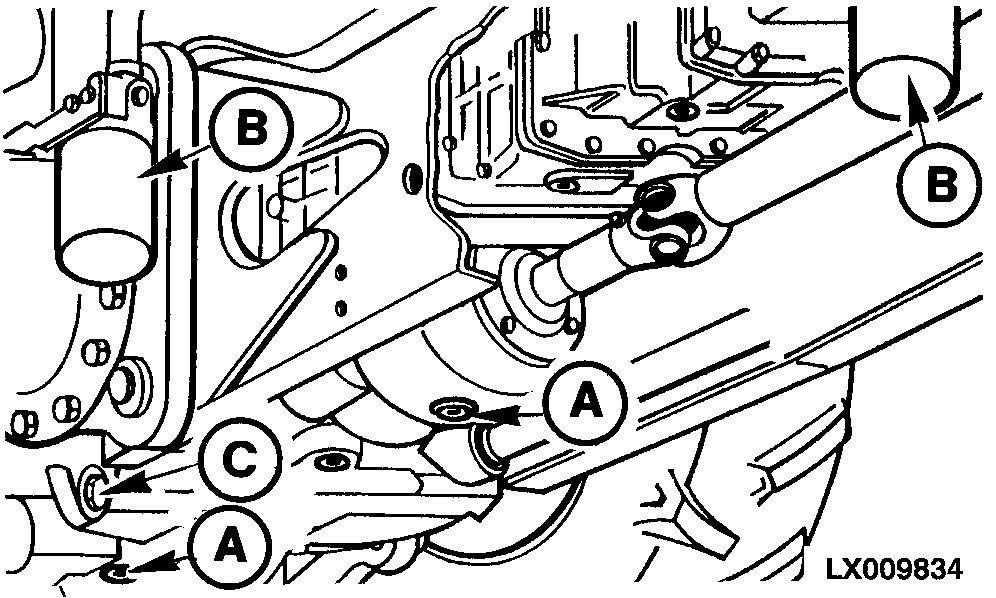

A-Drain screws
B-Transmission/hydraulic oil filters
C-Drain screw

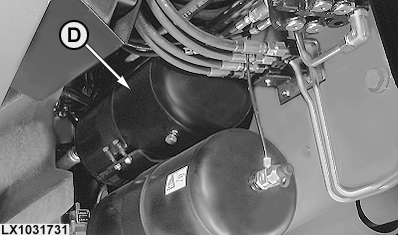

D-Additional oil reservoir

Capacities:
SyncroPlus transmission with 12/4 gears ... 52 liters (13.7 U.S.gal.)
Power Reverser with 16/16 gears ... 52 liters (13.7 U.S.gal.)
PowrQuad transmission with 16/16 or 16/12 gears ... 49 liters (12.9 U.S.gal.)
PowrQuad transmission with 24/24 or 24/16 gears ... 50 liters (13.2 U.S.gal.)
PowrQuad Plus transmission with 24/24 or 24/16 gears ... 50 liters (13.2 U.S.gal.)
AutoQuad Plus transmission with 24/24 or 24/16 gears... 50 liters (13.2 U.S.gal.)
Extra for creeper transmission... 1 liter (0.3 U.S.gal.)
Extra for front-wheel drive... 3 liters (0.8 U.S.gal.)
Extra for TLS axle... 3 liters (0.8 U.S.gal.)
Extra for additional oil reservoir... 14 liters (3.7 U.S.gal.)



Run engine briefly and operate hydraulic functions. Shut off the engine.

Wait for between 10 and 15 minutes before checking the oil level. It should be between the marks on the dipstick. If not, correct oil level.
