Quick-Coupling (Hook-Type) Draft Links

These draft links are intended for Category II and Category III implement balls.

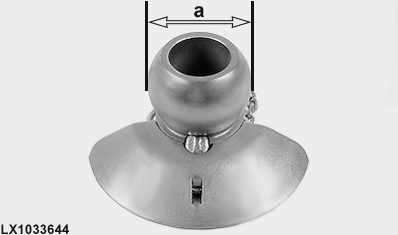

IMPORTANT: The balls used must be of the correct size.

A-Ball diameter

OU12401,0001206 -19-03MAY05-1/6

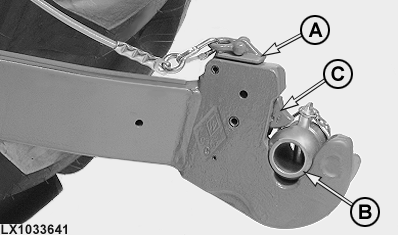

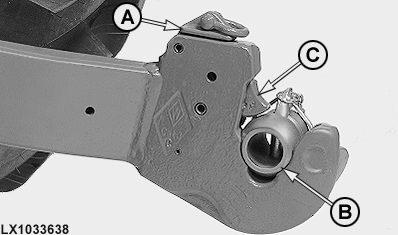

The couplers are operated by means of lever (A), which can be actuated either by hand or by a control cable.

IMPORTANT: Make absolutely certain that the coupler hooks are locked correctly:

Lever (A) must be in proper contact with the coupler hook, there must be no play noticeable at ball (B) and pin (C) must enclose the ball.

If coupler hooks have a control cable, pay attention to how the cable runs after the implement has been attached. If the cable droops excessively or gets tangled in the undergrowth or branches, the hooks may be opened by accident.

A-Lever
B-Ball
C-Pin

OU12401,0001206 -19-03MAY05-2/6

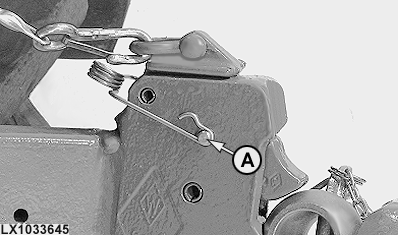

CAUTION: When implements with asymmetrical load (e.g. side-mounted mowing unit) are attached, or when driving through high-growing bushes and trees (e.g. when working in the forest), the draft links must be secured against opening accidentally.

Use John Deere AL165485 lock parts kit at both of the coupler hooks.

A-Lock parts kit

OU12401,0001206 -19-03MAY05-3/6

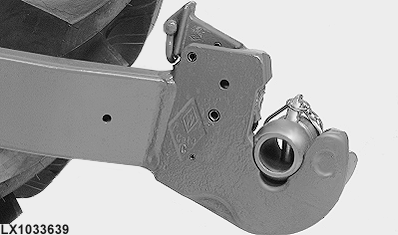

The coupler hooks can be locked in their "open" position.

OU12401,0001206 -19-03MAY05-4/6

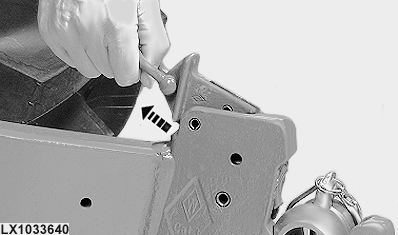

To close the coupler hook again, first pull the lever up at an oblique angle.

OU12401,0001206 -19-03MAY05-5/6

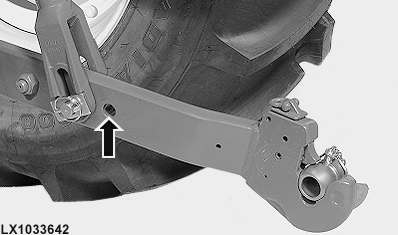

NOTE: On very heavy, compact implements, the lift links can be attached at the rear hole in the draft links. This reduces the lifting height, but maximizes the lifting force.

OU12401,0001206 -19-03MAY05-6/6
