After the First 100 Hours of Operation

Change engine oil. See "Service - Every 500 Hours".

Renew engine oil filter element. See "Service - Every 500 Hours".

Tighten retaining bolts on pick-up hitch. See "Service - Every 250 Hours".

Check air intake hoses for leaks See "Service - Every 500 Hours".

Change transmission/hydraulic oil filter(s). See "Service - Every 750 Hours".

Change oil in front-wheel drive axle. See "Service - Every 1500 Hours".

OU12401,0010408 -19-01JAN03-1/2

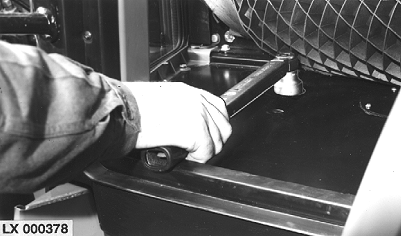

Check cab mounting torques

Check all cab attaching screws for tightness.

Specified torques are as follows:

  • Front attaching screws: 220 N·m (160 lb-ft)
  • Rear attaching screws: 200 N·m (140 lb-ft)
LX000378

OU12401,0010408 -19-01JAN03-2/2
