Center Link Positions

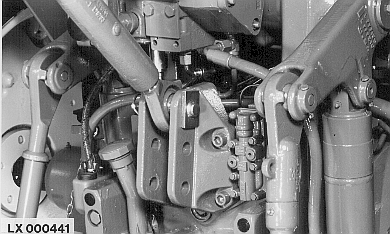

The center link can be attached to the tractor in any one of three different positions.

The lowest position (maximum tilt angle, less lifting force required) should be used when working with a plow.

The highest position provides greater lifting force and minimum tilt angle, and can be used when working with machines such as direct drills.
