OMAL161979: 6020, 6120, 6220, 6320, 6420 and 6420S Tractors(398791- ), Block File: OULXE59_001061D_19

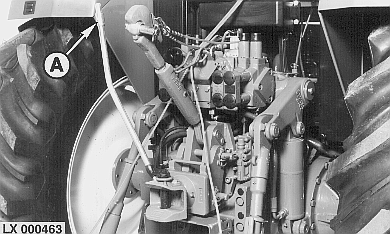

Trailer hitch pin (A) can be removed from the operator's seat.

IMPORTANT: Use trailer hitches with a towing eye diameter of 40 mm (1-37/64 in.) only.

Maximum permissible static vertical loads and towable drawbar loads are stated in the "Specifications" section.

NOTE: Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer (see "Service / Every 500 Hours").

OULXE59,001061D -19-26FEB04-1/1
