Tow Hitch (Piton Fix/Ball-Type)
NOTE:
Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer (see "Service / Every 500 Hours").

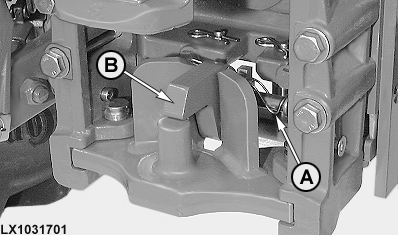

Tow hitch (piton fix)
To attach a trailer or trailed implement, pull out pin (A). Retainer (B) is forced upwards by a spring. Once the trailer or trailed implement has been attached, press retainer (B) down and secure it with pin (A).
|
|
|
|
OULXE59,001061E -19-26FEB04-1/3
|

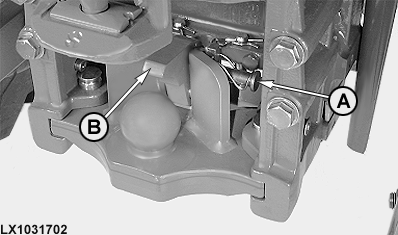

Ball-type tow hitch
To attach a trailer or trailed implement, pull out pin (A). Retainer (B) is forced upwards by a spring. Once the trailer or trailed implement has been attached, press retainer (B) down and secure it with pin (A).
|
|
|
|
OULXE59,001061E -19-26FEB04-2/3
|

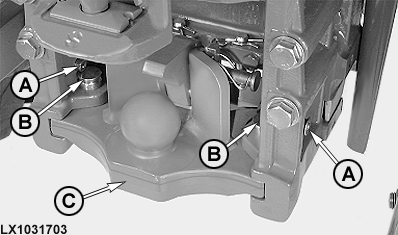

Replacing with a swinging drawbar
The piton fix tow-hitch or ball-type tow-hitch can easily be removed, e.g. to allow the installation of a swinging drawbar. Take out locking pin (A), then take out retaining pin (B) and pull the carrier (C) out to the rear.
|
|
|
|
OULXE59,001061E -19-26FEB04-3/3
|
|
