Quick-Coupling (Hook-Type) Center Link

This center link is intended for Category II and Category III implement balls.

IMPORTANT: The ball used must be of the correct size.

Category Ball diameter (A)
II 50 mm (2.0 in.)
III 60 mm (2.4 in.)

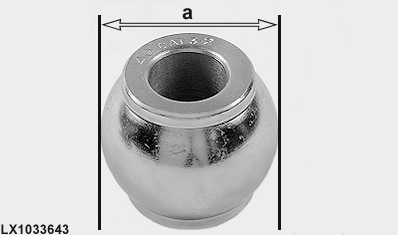

A-Ball diameter

LX1033643

OULXE59,0010684 -19-27OCT04-1/2

How to use the coupler hook

The coupler is operated by means of lever (A), which can be actuated either by hand or by a control cable.

IMPORTANT: Make absolutely certain that the coupler hook is locked correctly:

Lever (A) must be in proper contact with the coupler hook, there must be no play noticeable at ball (B) and pin (C) must enclose the ball.


A-Lever
B-Ball
C-Pin

LX1031601

Coupler hook operated by hand

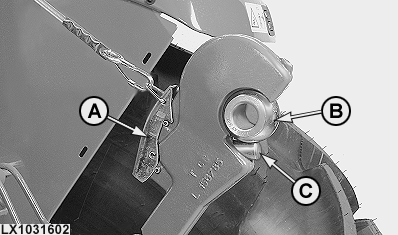

LX1031602

Coupler hook operated by means of a control cable

OULXE59,0010684 -19-27OCT04-2/2
